P.series Ø22 flush
CHARACTERISTICS
- IP rating : IP69K
- Electrical specs : 0-24V AC / DC
- Operating temperature : -40C to +125C
ELECTRIC CHARACTERISTICS
MECHANICAL CHARACTERISTICS
ENVIRONMENTAL CHARACTERISTICS
- Switch Function : N.O. Momentary
- Switch Voltage: 0-24 AC/DC ( CC/CA)
- Switching Current: 0.2A std (0.5A option)
- Rated Breaking Capacity : 1W
- Operating Cycles : >50,000,000
- Switch Resistance OFF : >5 MΩ
- Switch Resistance ON : 20Ω
- Capacity: 30 pF
- Pulse Duration : 125-300mS
- Contact Configuration : free Polarity
MECHANICAL CHARACTERISTICS
- Material : aluminum 6061 T651 or Stainless steel (303/304)
- Actuating Force : 3-5 Newton
- Connection : 2 × 22 guage wires
- Shock Protection : IK 06
- Fastening Torque : 2.5 Nm
ENVIRONMENTAL CHARACTERISTICS
- Operating temperature : -40 to +125 °C
- Storage temperature : -40 to +125 °C
- IP Protection : IP69K (front and back)

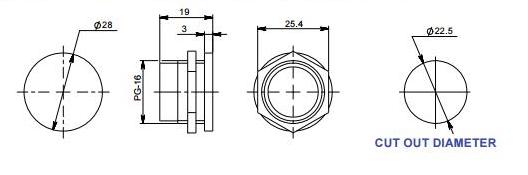

Technical datasheet P.series 22 mm flush
