 Ø19 flush non illuminated

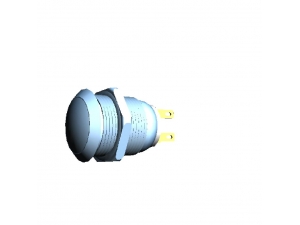

Ø19 flush non illuminated
R.series The range consists of vandal resistant push buttons.

Used for various applications, they combine design, rapid switching capacity and high fiabilité.De more, they have a long life and provides easy integration.

They are waterproof and have a high impact, they can use in places exposed to the public and in aggressive industrial environments.

Different versions available:
  • Ø19
  • Materials: Stainless steel, gold brass, nickel plated brass
  • Screw output
  • Switching: quick break contact "Fast Action"
  • Function: Momentary or maintained
  • Actuator flush
  • Switching: 1NO / 1NC

TYPICAL APPLICATIONS
  • Access control, security systems
  • Ticket and vending machines, kiosks
  • Industrial machinery and equipment ...
ELECTRICAL CHARACTERISTICS
  • Switching rate:
    • 5A / 250VAC
  • Electrical life (full load):
    • 50 000 cycles
  • Insulation resistance
    • > 1000 MΩ
  • Contact resistance:
    • ≤ 50 mΩ
  • Dielectric strength
    • 2000 VAC
  • LED Life
    • 40 000 Hours

ENVIRONMENTAL CHARACTERISTICS
  • Temperature:
    • Operating -20°C to +55°C
  • Vandal resistance:
    • Impact resistant to IK09
    • Sealed to IP65
  • RoHs

MECHANICAL CHARACTERISTICS
  • Actuating force
    • ≈ 5.5N Pin terminal version  et ≈ 4N Screw terminal version.
  • Mechanical lifetime
    • 1 million of cycles

SWITCHING SYSTEM
  • Contact arrangement:
    • 1 NO (Normally Open and 1 NC (Normally Closed)
  • Function:
    • Momentary
  • Terminals:
    • Pin terminal 2.8mm x 0.5mm and Screw terminal

SCREW TERMINAL


PIN TERMINAL (2.8mm x 0.5mm)

R.series 19 mm non illuminated

3D plane R.series non illuminated
